Sketchでハートを描いてみる
こちらのイラストレータ記事を参考にハートを描いてみました。
Sketchはv43.2を使っています。
文字からハートを作る
まずはテキストでハートをセットします。
それを右クリックして「Convert to Outlines」を選びます。
以上でアウトライン化は完了です。
パスを自由に変形できるようになりました。
線からハートを作る
まずは四角形を描きます。
次に右上のパスをDeleteボタンで削除します。
三角形ができるので、一番長い辺の真ん中にパスを追加します。
作ったパスを左下に移動して、線の太さも大きくします。
次は線を丸くします。
最後に角度と高さを調整すれば完成です。
こちらはメニューのLayerからアウトライン化できます。
ペンツールでハートを作る
まずはVectorを使って半分のハートを描きます。
あとはそれをコピーして反転すれば完成です。
【Swift4】SpringIndicatorでおしゃれローディング
ローディング表示をオシャレにしたくて、SpringIndicatorというライブラリを試してみました。
インストール
いつものようにCocoaPodsでインストールします。
target 'MyApp' do use_frameworks! pod "SpringIndicator" end
実装
実装はとても簡単で、SpringIndicatorを初期化してviewに貼り付けるだけです。
import UIKit import SpringIndicator class ViewController: UIViewController { override func viewDidLoad() { let indicator = SpringIndicator(frame: CGRect(origin: view.center, size: CGSize(width: 100, height: 100))) view.addSubview(indicator) indicator.start() } }
線の太さや色を変えることができます。
let indicator = SpringIndicator(frame: CGRect(origin: view.center, size: CGSize(width: 100, height: 100))) indicator.lineWidth = 5 indicator.lineColor = .brown
lineColorsをセットすると、1週ごとに色が変化して面白いです。
let indicator = SpringIndicator(frame: CGRect(origin: view.center, size: CGSize(width: 100, height: 100))) indicator.lineColors = [.red, .purple, .blue, .purple]
回転速度も変更可能です。
let indicator = SpringIndicator(frame: CGRect(origin: view.center, size: CGSize(width: 100, height: 100))) indicator.rotationDuration = 4.0
Reachability.swiftで通信状況を確認する
Reachability.swiftというライブラリで現在の通信状況を調べてみました。
Reachability.swiftのインストール
インストールはCocoaPodsで行いました。
target 'MyApp' do use_frameworks! pod 'ReachabilitySwift' end
通信状況を確認する
Wifi/キャリア通信/電波なし は下のように確認できます。
import UIKit import Reachability class ViewController: UIViewController { override func viewDidLoad() { super.viewDidLoad() if let reachability = Reachability() { print(reachability.connection == .wifi) print(reachability.connection == .cellular) print(reachability.connection == .none) } } }
通信可能になった時に通知する
whenReachableを使えば、通信可能になったタイミングを知ることができます。
let reachability = Reachability() reachability?.whenReachable = { reachability in print(reachability.connection) } try? reachability?.startNotifier()
逆に通信できなくなったタイミングを知りたい時はwhenUnreachableを使います。
let reachability = Reachability() reachability?.whenUnreachable = { reachability in print(reachability.connection) } try? reachability?.startNotifier()
この時、Reachabilityはインスタンス変数にするなどして開放されないよう気をつける必要があります。
import UIKit import Reachability class ViewController: UIViewController { let reachability = Reachability() override func viewDidLoad() { super.viewDidLoad() reachability?.whenReachable = { reachability in } try? reachability?.startNotifier() } }
通信状況が変わった時の通知は、NotificationCenterで検知する事もできます。
import UIKit import Reachability class ViewController: UIViewController { let reachability = Reachability() override func viewDidLoad() { super.viewDidLoad() NotificationCenter.default.addObserver(self, selector: #selector(self.reachabilityChanged), name: .reachabilityChanged, object: reachability) try? reachability?.startNotifier() } @objc func reachabilityChanged() { print(Reachability()?.connection) } }
Admobのネイティブアドバンス広告を試してみる
Admobのネイティブアドバンス広告というフォーマットを試してみました。
これは他社でよくあるネイティブ同様、渡された文字列や画像で広告画面を作っていくもののようです。
ネイティブアドバンス広の広告ユニット作成

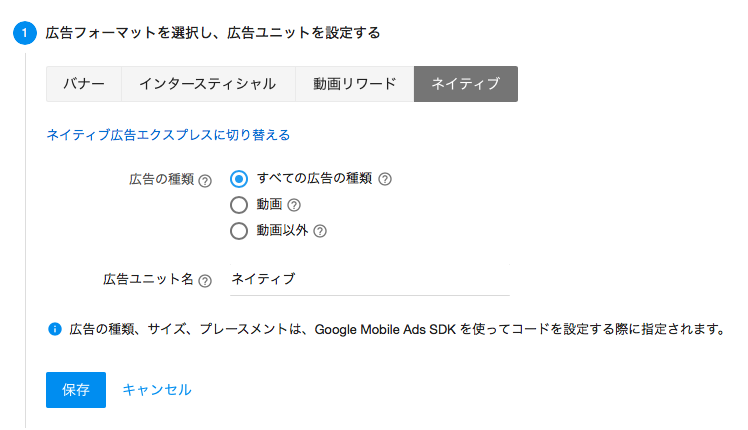

まずはAdmobの画面から広告ユニットを作成します。
下のネイティブを選択して、「ネイティブ広告アドバンスに切り替える」リンクをクリックします。
注) こちらのリンクですが、2017/10/23現在アカウントによって出たり出なかったりしているようです。
もしかすると一部ユーザーにしか開放されていないのかもしれません。
切り替えたら広告の種類を選んで作成完了です。
ネイティブアドバンス広告の実装
まずはCocoaPodsでAdmobをインストールします。
target 'MyApp' do use_frameworks! pod 'Google-Mobile-Ads-SDK' end
ネイティブアドバンス広告のデータ取得は下の通りです。
adUnitIDは先程登録したものを利用してください。
import UIKit import GoogleMobileAds class ViewController: UIViewController { var adLoader: GADAdLoader? override func viewDidLoad() { super.viewDidLoad() adLoader = GADAdLoader(adUnitID: "AD UNIT ID", rootViewController: self, adTypes: [.nativeAppInstall], options: nil) adLoader?.delegate = self adLoader?.load(GADRequest()) } } extension ViewController: GADNativeAppInstallAdLoaderDelegate { func adLoader(_ adLoader: GADAdLoader, didReceive nativeAppInstallAd: GADNativeAppInstallAd) { } func adLoader(_ adLoader: GADAdLoader, didFailToReceiveAdWithError error: GADRequestError) { } }
Delegateメソッドでは、広告のタイトル・アイコン・本文などが渡されるので、それを使って広告を組み立てます。
extension ViewController: GADNativeAppInstallAdLoaderDelegate { func adLoader(_ adLoader: GADAdLoader, didReceive nativeAppInstallAd: GADNativeAppInstallAd) { nativeAppInstallAd.headline // → タイトル nativeAppInstallAd.body // → 説明文 } func adLoader(_ adLoader: GADAdLoader, didFailToReceiveAdWithError error: GADRequestError) { } }
実際の広告表示はXibファイルを利用します。

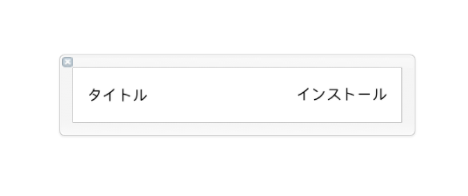

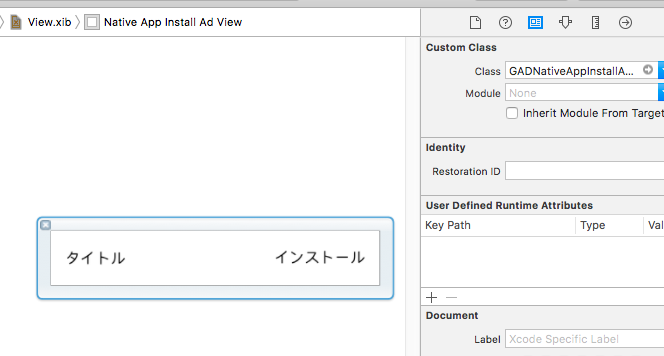

Xibファイルを作り、そのViewをGADNativeAppInstallAdViewにします。

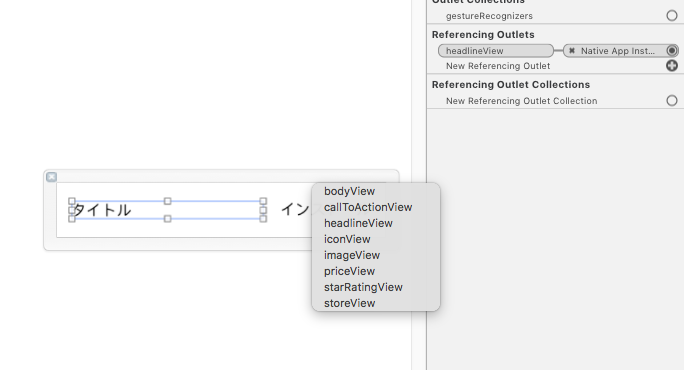

その上にラベルを配置して、GADNativeAppInstallAdViewのheadlineViewなど、各プロパティーに紐付けていきます。
ここまで終わったら、Xibを使って広告を表示します。
下では、Xibを読み込んでheadlineとcallToActionをセットしています。
extension ViewController: GADNativeAppInstallAdLoaderDelegate { func adLoader(_ adLoader: GADAdLoader, didReceive nativeAppInstallAd: GADNativeAppInstallAd) { let adView = Bundle.main.loadNibNamed("View", owner: self, options: nil)?.first as! GADNativeAppInstallAdView adView.backgroundColor = UIColor.lightGray adView.frame = CGRect(x: 0, y: view.frame.height - 50, width: view.frame.width, height: 50) adView.nativeAppInstallAd = nativeAppInstallAd view.addSubview(adView) (adView.headlineView as? UILabel)?.text = nativeAppInstallAd.headline (adView.callToActionView as? UILabel)?.text = nativeAppInstallAd.callToAction } func adLoader(_ adLoader: GADAdLoader, didFailToReceiveAdWithError error: GADRequestError) { } }

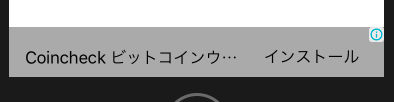

実行すると広告を表示する事ができます。
ラベルをタップすればAppStoreのページに遷移します。
今回は試してないのですが、広告タイプはインストール型以外にもあるようです。
GAD_EXTERN GADAdLoaderAdType const kGADAdLoaderAdTypeNativeAppInstall; GAD_EXTERN GADAdLoaderAdType const kGADAdLoaderAdTypeNativeContent; GAD_EXTERN GADAdLoaderAdType const kGADAdLoaderAdTypeNativeCustomTemplate; GAD_EXTERN GADAdLoaderAdType const kGADAdLoaderAdTypeDFPBanner;
iPhoneアプリリリース時の「輸出コンプライアンス」のチェックを省く方法

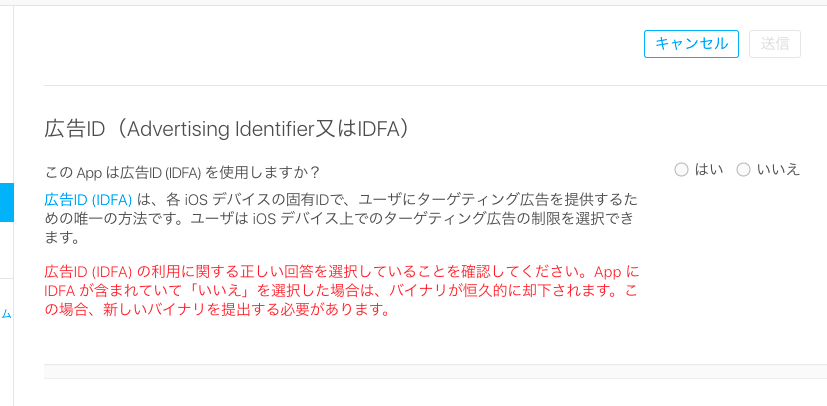

iTunesConnectから審査に提出する際、「輸出コンプライアンス」と「広告ID」についてチェックをする必要があります。
毎回入力するのが手間だったので、省略する方法はないか調べてみました。
調べたところ、「輸出コンプライアンス」はInfo.plistにITSAppUsesNonExemptEncryptionを入れれば省略できるようです。
試したところ「輸出コンプライアンス」が表示されなくなりました。
objc_getAssociatedObjectで既存オブジェクトにプロパティーを追加
objc_getAssociatedObjectを使ってUIViewに新しいプロパティーを生やしてみました。
UIViewにプロパティーを追加する
UIViewにvalueというプロパティーを生やします。
実装は簡単で、下のようなextensionを追加すれば完了です。
private var valueKey = 0 extension UIView { var value: Int? { get { return objc_getAssociatedObject(self, &valueKey) as? Int } set { objc_setAssociatedObject(self, &valueKey, newValue, .OBJC_ASSOCIATION_ASSIGN) } } }
実行すると、下のように値をセットする事ができます。
let view = UIView() print(view.value) // → nil view.value = 10 print(view.value) // → Optional(10)
もちろんインスタンスが違えばプロパティーも別です。
let view = UIView() let view2 = UIView() view.value = 10 print(view.value) // → Optional(10) print(view2.value) // → nil
キーとして宣言したvalueKeyですが、型はInt以外でも問題ありません。
private var valueKey = "valueKey" extension UIView { var value: Int? { get { return objc_getAssociatedObject(self, &valueKey) as? Int } set { objc_setAssociatedObject(self, &valueKey, newValue, .OBJC_ASSOCIATION_ASSIGN) } } }
valueKeyの値は他プロパティーと被っても問題ありません。
private var valueKey = "valueKey" private var valueKey2 = "valueKey" extension UIView { var value: Int? { get { return objc_getAssociatedObject(self, &valueKey) as? Int } set { objc_setAssociatedObject(self, &valueKey, newValue, .OBJC_ASSOCIATION_ASSIGN) } } var value2: Int? { get { return objc_getAssociatedObject(self, &valueKey2) as? Int } set { objc_setAssociatedObject(self, &valueKey2, newValue, .OBJC_ASSOCIATION_ASSIGN) } } } let view = UIView() print(view.value) // → nil print(view.value2) // → nil view.value = 10 print(view.value) // → Optional(10) print(view.value2) // → nil
UICollectionViewの並び替え
UICollectionViewでの並び替えを試してみました。
Storyboardを使わないでUICollectionViewを表示
まずは普通にUICollectionViewを表示してみます。
コードは下の通りです。
class CollectionViewController: UICollectionViewController { override func viewDidLoad() { super.viewDidLoad() collectionView?.register(UICollectionViewCell.self, forCellWithReuseIdentifier: "Cell") collectionView?.backgroundColor = UIColor.white } override func numberOfSections(in collectionView: UICollectionView) -> Int { return 2 } override func collectionView(_ collectionView: UICollectionView, numberOfItemsInSection section: Int) -> Int { return 5 } override func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell { let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "Cell", for: indexPath) cell.backgroundColor = UIColor.lightGray return cell } }
CollectionViewのレイアウトは下の通りです。
let layout = UICollectionViewFlowLayout() layout.itemSize = CGSize(width: 100, height: 100) layout.minimumLineSpacing = 10 layout.sectionInset = UIEdgeInsets(top: 20, left: 0, bottom: 0, right: 0)
実行すると下のようにCollectionViewが表示されます。
UICollectionViewの並び替え
UICollectionViewの並び替えはmoveItemAtを実装するだけで完了です。
class CollectionViewController: UICollectionViewController { override func collectionView(_ collectionView: UICollectionView, moveItemAt sourceIndexPath: IndexPath, to destinationIndexPath: IndexPath) { } }
これで下のように並び替えをする事ができるようになります。
